CRS7128 series|Managed 24+4G Modular Ethernet Switch
CRS7128 series
Series Description: Managed 24+4G Modular Ethernet Switch

* Max to 24*10/100BASE-T(X) RJ45 ports;
* Max to 8*10/100BASE-TX RJ45 or 100BASE-FX ports (SC/ST/FC optional);
* 4*Gigabits SFP slots, any support 1000M SFP fiber module(support SM/MM) or electrical module;
* Support Web, CLI and SNMP;
* Support QoS, IGMP, 802.1Q VLAN;
* Support CK-Ring for Ethernet redundancy;
* Support relay alarm output, used in power supply, ports, ring network power supply for the alarm;
* High strength IP40 shell and industrial-grade EMC design;
* Support redundant dual voltage 110/220VAC power input, or 220VDC or
48VDC power input;
* Support the standard 19" rack-mountable installation, optional wall-mounted installation;
* Operating temperature range: -40~75℃, suitable for industrial environment applications

  • Introduction
  • Specification
  • Dimension
  • Download
  • Order
  • Application
         This series industrial ethernet switch provides 16*10/100M RJ45, 4 fixed 1000Base-X module or 1000Base-T module SFP and optional 8* 100Base-FX optical ports(SC/FC/ST) or 8*10/100M RJ45. Management through Web/CLI/SNMP.  Industrial standard 1U Rack-mount install.
    * IEEE802.3、IEEE802.3u、IEEE 802.3z、IEEE802.3x、IEEE802.1Q、IEEE802.1p 、IEEE802.1d、IEEE802.1w

    * RJ45: 10/100Base-T(X) , speed adaptive, Full/Semi-Duplex, MDI/MDI-X adaptive
    * SFP: 1000Base-X or SFP Copper 1000Base-T
    * Console: RS-232(RJ45)

    * 10M Forward: 14881pps
    * 100M Forward: 148810pps
    * 1000M Forward: 1488096pps
    * Mode: Store and forward
    * Banwidth: 12.8Gbps
    * Cache: 1.5Mbits
    * MAC: 16K

    * AC Input: redundant 100~240V AC(50~60Hz 1.2A)
    * DC Input: redundant 36~48V DC
    * Relay: port, power and ring network errors alarm
    * Max. capcity: 1A@24VDC

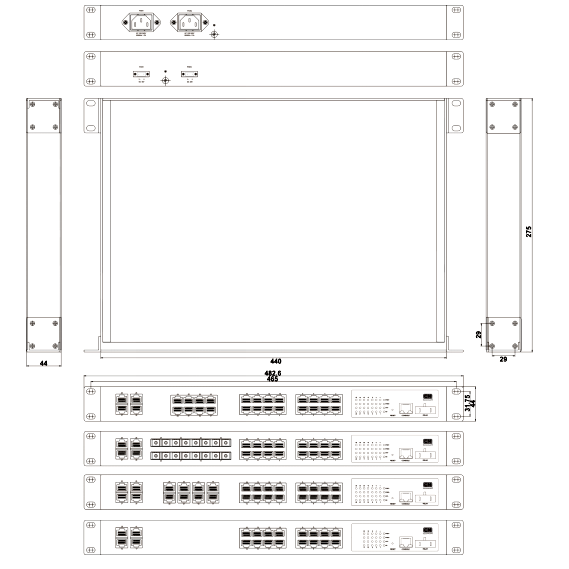

    * Dimension(W×H×D): 482.6mm×44mm×322.5mm
    * Net Weight: 5kg
    * Case: IP40 metal case
    * Install: Standard 1U Rack-Mount

    * Working Temperature: -40℃~75℃
    * Storage Temperature: -40℃~85℃
    * Humidity: 5% ~ 95% (no condensing)

    * 5years

    SelectProduct ModelDescribe
    CRS7128-8SFP16*10/100BASE-T(X), 8*10/100M SFP card module(electronical/optical), 4*1000M SFP (electronical/optical), 19" 1U Rack-mount, managed.
    CRS7128-8FX16*10/100BASE-T(X), 8*10/100BASE-F(X) electronic module, 4*1000M SFP (electronical/optical), 19" 1U Rack-mount, managed.
    CRS7128-8TX16*10/100BASE-T(X), 8*10/100BASE-T(X) electronic module, 4*1000M SFP (electronical/optical), 19" 1U Rack-mount, managed.
