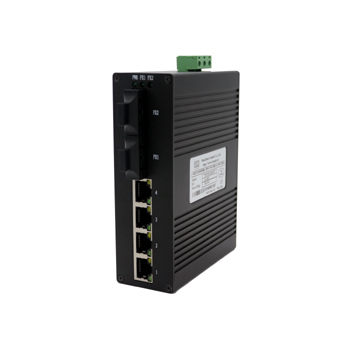

CK1042 Serial|Unmanaged 6 Ports Ethernet Switch
1/10
Pre
Next
CK1042 Serial
Series Description: Unmanaged 6 Ports Ethernet Switch

* 4*10/100Base-T(X) RJ45 ports, support Auto-Negotiation speed (10M/100M ), auto Full Duplex/ Half Duplex mode, auto MDI/MDI-X connection
* 2*100BaseFX Fiber ports (default SC port, FC/ST port optional), max distance to 120km
* Support wide range voltage 12~48V DC power input
* Metal housing with IP40 protection, support high EMC level
* DIN-Rail Mounting and Wall Mounting supported
* Wide Operating Temperature (-40~85℃) to satisfy harsh industrial environment

  • Introduction
  • Specification
  • Dimension
  • Download
  • Order
  • Application
        6-Port 100M Compact Industrial Ethernet Switch is designed with IP40 metal housing and high level EMC protection, supports Auto-Negotiation speed,power input with wide range voltage, 4*10/100BaseT(X) RJ45 ports and 2*100BaseFX fiber ports, and DIN35 rail or wall mounting for the different industrial circumstances. It can work in harsh -40~85℃ environment to provide the reliability and flexibility for your industrial Ethernet solution.

    Features
    * Support 802.3/802.3u, store-and-forward switching
    * 4*10/100Base-T(X) RJ45 ports, support Auto-Negotiation speed (10M/100M ), auto Full Duplex/ Half Duplex mode, auto MDI/MDI-X connection
    * 2*100BaseFX Fiber ports (default SC port, FC/ST port optional), max distance to 120km
    * Metal housing with IP40 and high level EMC protection
    * Wide range power voltage with 12~48V DC input
    * Work in -40~85℃ wide temperature

    Technical Standard
    * Protocol: IEEE802.3、IEEE802.3u

    Interface
    * RJ45 port: 10/100BaseT(X) speed Auto-Negotiation, Full/Half Duplex mode, MDI/MDI-X connection
    * Fiber port: 100BaseFX100M Full Duplex SC port (with FC/ST options ), max distance to 120km

    Switching Characteristic
    * 10M Frame Forward Rate:14881pps
    * 100M Frame Forward Rate:148810pps
    * Forward Mode:store-and-forward
    * Switching Bandwidth:1.2Gbps
    * Cache Size:448Kbits
    * MAC Address Table:1K

    Power Supply
    * Input: Wide DC power input 12~48V DC (12V/24V/48V typical) with 7.62mm industrial power terminal
    * No-load Consumption:< 2.16W (@24V DC)
    * Full-load Consumption:< 2.88W (@24V DC)

    Physical Characteristic
    * Dimensions(W×H×D):40mm×128mm×96mm
    * Weight:300g
    * Housing: Metal, IP40 protection
    * Installation: Wall mounting or DIN rail mounting

    Environment Limits
    * Work Temp:-40℃~85℃
    * Storage Temp:-40℃~85℃
    * Relative Humidity:5%~95%(non-condensing)

    Warranty
    * Warranty Period: 5 years

    SelectProduct ModelDescribe
    CK1042-X-XXSpecial ports and distances available. Provide us your requirements for customized products.
    CK1042-W-SC4*10/100Base-T(X) RJ45, 2*100Base-FX optical ports(SC), single mode single fiber 20KM
    CK1042-S-FC4*10/100Base-T(X) RJ45, 2*100Base-FX optical ports(FC), single mode dual fiber 20KM
    CK1042-S-ST4*10/100Base-T(X) RJ45, 2*100Base-FX optical ports(ST), single mode dual fiber 20KM
    CK1042-S-SC4*10/100Base-T(X) RJ45, 2*100Base-FX optical ports(SC), single mode dual fiber 20KM
    CK1042-M-FC4*10/100Base-T(X) RJ45, 2*100Base-FX optical ports(FC), multi mode dual fiber 2KM
    CK1042-M-ST4*10/100Base-T(X) RJ45, 2*100Base-FX optical ports(ST), multi mode dual fiber 2KM
    CK1042-M-SC4*10/100Base-T(X) RJ45, 2*100Base-FX optical ports(SC), multi mode dual fiber 2KM
