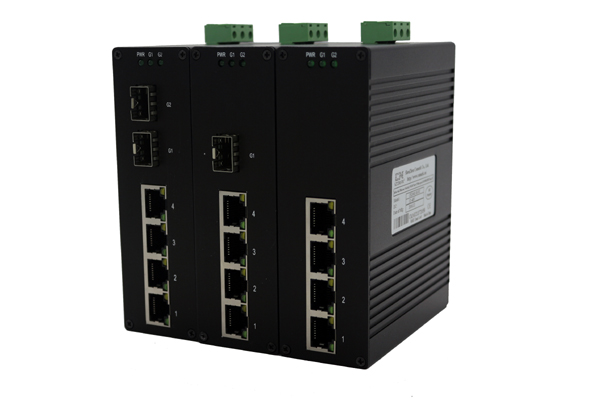

CK1242/1241/1240 Serial
Series Description: Unmanaged 10G Ports Ethernet Switch

* 4 gigabit Ethernet ports, Auto-negotiation speed, auto Full/Half Duplex Mode, and auto MDI/MDI-X connection
* 0~2 1000M SFP ports, 1000M optic fiber(SM/MM) or RJ45 interface module optional
* Support wide range voltage 12~48V DC power input and over-current protection function
* Metal housing with IP40 protection, support high EMC level
* DIN-Rail Mounting and Wall Mounting supported
* Wide Operating Temperature (-40~75℃) to satisfy harsh industrial environment

  • Introduction
  • Specification
  • Dimension
  • Download
  • Order
  • Application
        6-Port Gigabit Compact Industrial Ethernet Switch is designed with IP40 metal housing and high level EMC protection, supports Auto-Negotiation speed, power input with wide range voltage, 4*10/100/1000BaseT(X) RJ45 ports and 0~2 1000M SFP ports, and DIN35 rail or wall mounting for the different industrial circumstances. It can work in harsh -40~75℃ environment to provide the reliability and flexibility for your industrial Ethernet solution.
    Feature
    * Support for IEEE802.3/802.3u/802.3ab/802.3z, store-and-forward switching
    * 4*10/100/1000Base-T(X) RJ45 ports, support Auto-Negotiation speed (10M/100M ), auto Full Duplex/ Half Duplex mode, auto MDI/MDI-X connection
    * 0~2 1000M SFP ports (1000Base-X, 1000Base-T optional), max distance to 120km
    * Metal housing with IP40 and high level EMC protection
    * Support wide range voltage 12~48V DC power input and over-current protection function
    * Work in -40~75℃ wide temperature

    Technical Standard
    * Protocol: IEEE802.3、IEEE802.3u、IEEE 802.3ab、IEEE 802.3z

    Interface
    * RJ45 port: 10/100/1000BaseT(X) speed Auto-Negotiation, Full/Half Duplex mode, MDI/MDI-X connection
    * SFP port: 1000Base-X, SFP Copper 1000Base-T optional, support for twisted pair transmission

    Switching Characteristic
    * 10M Frame Forward Rate:14881pps
    * 100M Frame Forward Rate:148810pps
    * 1000M Frame Forward Rate:1488096pps
    * Forward Mode:store-and-forward
    * Switching Bandwidth:12Gbps
    * Cache Size:1Mbits
    * MAC Address Table:1K

    Power Supply
    * Input: Wide DC power input 12~48VDC (12V/24V/48V typical) with 7.62mm industrial power terminal
    * No-load Consumption:< 0.48W (@24VDC)
    * Full-load Consumption:< 4.8W (@24VDC)

    Physical Characteristic

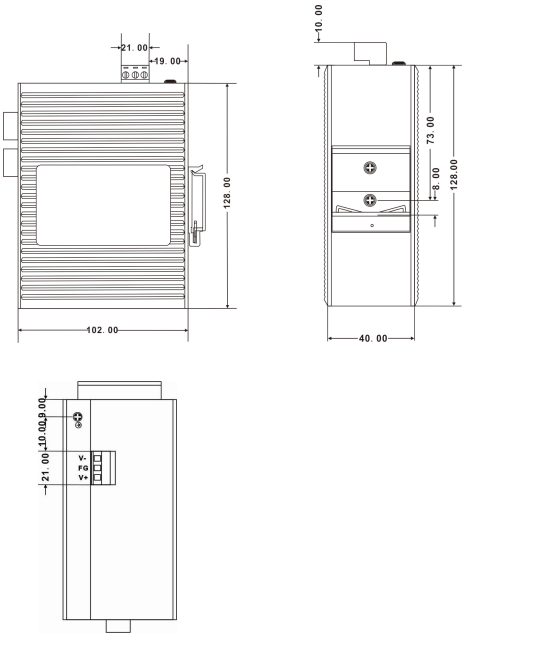

    * Dimensions(W×H×D):40mm×128mm×102mm
    * Weight:300g
    * Housing: Metal, IP40 protection
    * Installation: Wall mounting or DIN rail mounting

    Environment Limits
    * Work Temp:-40℃~75℃
    * Storage Temp:-40℃~85℃
    * Relative Humidity:5%~95%(non-condensing)

    Warranty
    * Warranty Period: 5 years
    SelectProduct ModelDescribe
    CK12424*10/100/1000Base-T(X) RJ45,two 1000M SFP(1000Base-X or 1000Base-T module)
    CK12414*10/100/1000Base-T(X) RJ45,one 1000M SFP(1000Base-X or 1000Base-T module)
    CK12404*10/100/1000Base-T(X) RJ45
