CK1022/1041/1050 Serial|Unmanaged 5 Ports Ethernet Switch
1/10
Pre
Next
CK1022/1041/1050 Serial
Series Description: Unmanaged 5 Ports Ethernet Switch

* 2~5 fast Ethernet ports, Auto-negotiation speed, auto Full/Half Duplex Mode, and auto MDI/MDI-X connection
* 0~2 100BaseFX ports ( SC connector default, FC/ST connector Optional ), Maximum 120km distance
* Wide range voltage 12~48V DC power input
* Metal housing with IP40 protection, support high EMC level
* DIN-Rail Mounting and Wall Mounting supported
* Wide Operating Temperature (-40~85℃) to satisfy harsh industrial environment

  • Introduction
  • Specification
  • Dimension
  • Download
  • Order
  • Application
    This series product is a compact type of industrial ethernet switch with 2~5 10/100Base-T(X) RJ45 and one 100Base-FX optical port. Support Auto-Negotiation and LED indicates.

    IP40 EMC metal case, DIN35 rail or wall mounting installation.
    Characteristics
    *  Compliant with IEEE802.3/802.3u standard
    *  Provide 2~5 10/100Base-T(X) RJ45 interfaces，support Auto-Negotiation, autoauto-negotiation speed, auto Full/Semi Duplex, MDI/MDI-X adptive
    *  Provide one 100Base-FX optical port SC/FC/ST, Max. transmission distance 120KM
    *  EMC IP40 case

    Communicaton
    * 10M Forward: 14881pps
    * 100M Forward: 148810pps
    *  Method: Store and forward
    *  Width: 1Gbps
    *  Cache: 448Kbits
    *  MAC: 1K

    Power
    *  Input: 12~48V DC
    *  Empty Load Consumption: 0.24W/1.68W/2.16W@24VDC
    *  Full Load Consumption: 0.96W/2.16W/2.46W@24VDC
    *  Internal overcurrent protection

    Machine

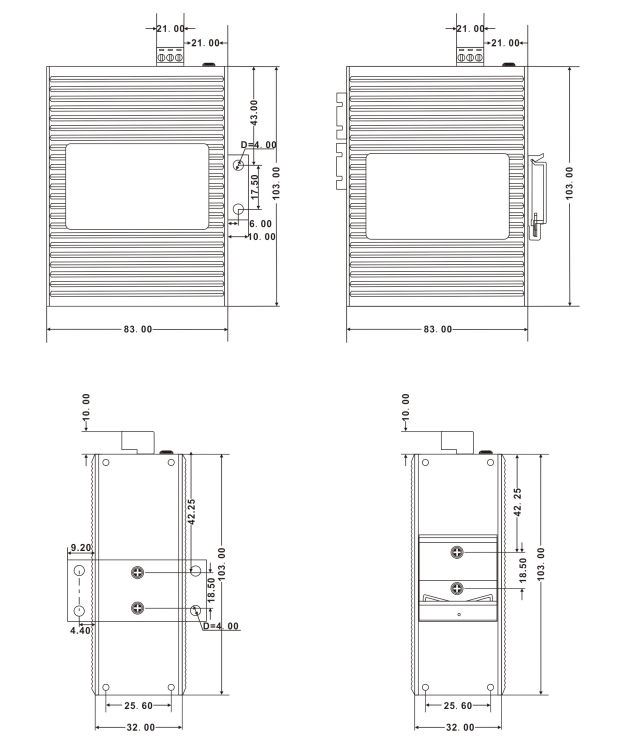

    *  Dimesion(W×H×D): 32mm×103mm×83mm
    *  Net Weight: 200g
    *  IP40 metal case
    *  DIN35 rail or wall mounting installation

    Environment
    *  Working Temperature: -40℃~85℃
    *  Storage Temperature: -40℃~85℃
    *  Humidity: 5%~95% (non-condensing)

    Warranty
    *  5 years
    SelectProduct ModelDescribe
    DR-24-24P(Industrial Rail Power)1A DC24V output, AC85~264V input
    CK10505*10/100Base-T(X)RJ45
    CK1041-W4*10/100Base-T(X) RJ45，1*100Base-FX optical port, single mode single fiber 20KM(other distance available)
    CK1041-S4*10/100Base-T(X) RJ45，1*100Base-FX optical port, single mode dual fiber 20KM(other distance available)
    CK1041-M4*10/100Base-T(X) RJ45，1*100Base-FX optical port, multi mode dual fiber 2KM
    CK1022-W2*10/100Base-T(X) RJ45，2*100Base-FX optical ports, single mode single fiber 20KM(other distance available)
    CK1022-S2*10/100Base-T(X) RJ45，2*100Base-FX optical ports, single mode dual fiber 20KM(other distance available)
    CK1022-M2*10/100Base-T(X) RJ45，2*100Base-FX optical ports, multi mode dual fiber 2KM
