- 10-Port POE Ethernet Switch is designed with EMC industrial IP40 housing, redundant dual inputs DC46~52V, provide 8 10/100BaseT(X) RJ45 ports with POE and 0~2 1000BaseF(X) SPF ports, the POE can output power up to 30W per port and support IEEE802.3 at/af, reduce the power cable and cost for your industrial application and solution.
Unmanaged POE Switch Features
* Support IEEE802.3/802.3u/802.3ab/802.3 at/af, store-and-forward switching
* 8 10/100BASE-T(X) RJ45 ports with POE, Auto-Negotiation speed（10M/100M）, auto Full/Half Duplex mode, auto MDI/MDI-X connection
* 0~2 1000 BASE-X SFP ports, 1000M optic fiber or RJ45 interface module optional
* Broadcast storm control
* IP40 protection housing with industrial high level EMC design
* Dual power 46~52V DC inputs, full load power consumption 145W with POE
* -40~60℃ operating temperature
- Interface
* RJ45 ports:10/100BaseT（X）auto negotiate speed, Full/Half Duplex, MDI/MDI-X connection
* PoE wiring: Power on unused lines, V+ on pin 4 and 5, V- on pin 7 and 8 ( Endspan Mode B )
* SFP ports: 1000BaseSFP Fiber ports, support Gigabit SFP fiber module or 1000BASE-T Copper SFP Module(RJ45)
* Relay output (Managed model only): 2-pin relay industrial terminal, contact capability 1A@24VDC
* Power input: 4-pin pluggable 7.62mm industrial power terminal
Power Supply
* Dual redundant inputs with 46~52V DC wide range voltage, typical 48V
* Overload-Current protection
Physical Characteristics

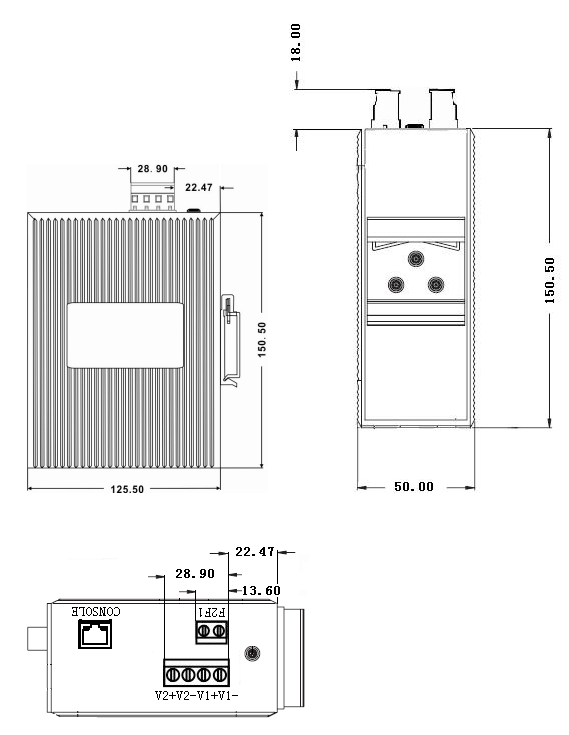

* Dimensions ( L x W x H ): 50mm×150.5mm×125.5mm
* Weight: 900g
* Case: Metal, IP40
* Installation: Wall mounting or DIN rail mounting
Environment Limits
* Operating Temp: -40℃~60℃
* Storage Temp: -40℃~85℃
* Relative Humidity: 10%~95% (non-condensing)
Standards and Certificates
* IEC61000-4-2(ESD): ±6KV touch，±15KV air
* IEC61000-4-3(RS): 10V/M (80-1000MHZ)
* IEC61000-4-4(EFT): Power cable ±4KV, data cable ±4KV
* IEC61000-4-5(Surge): Power cable ±2KV CM/±1KV DM, data cable ±2KV
* IEC61000-4-6(CS): 3V（10KHZ-150KHZ），10V（150KHZ-80MHZ）
* IEC61000-4-8(MS): 100A/M COUNT 1000A/M，1S TO 3S
* IEC61000-4-12/18(HFRD): 2.5KV CM，1KV DM
* IEC61000-4-10(DP): 30A/M
* IEC61000-4-16(CM): 30V COUNT 300V，1S
* IEC61000-6-2, IEC61850-3, IEEE1613
* EN50121-4
