CKP7224GM
Series Description: Managed 26GE Port POE Ethernet Switch

* Network Management Industrial Switch
* Up to 26 1000BaseFX SFP optical ports
* Up to 48 10/100/1000 BaseT(X) ports
* Following the IEEE 802.3 Standard
* 10/100/1000Mbps, full/half duplex, MDI/MIDX polar self
* Adaptation
* Supporting Broadcast Storm Suppression Function
* Supporting 9600Byte Giant Frame
* Supporting 4096 VLANs
* Support RSTP/STP network redundancy
* Support SNMP V1, V2c, V3
* Support IGMP Snooping
* Provide WEB/Telnet/Consol/SSH/CLI multiple network management modes
* SFP Optical Fiber Module Optical Fiber Transmission Farthest 120KM
* Supply Voltage 90V~264V DC
* Lightning Protection of Power Interface 6KV
* Aluminum enclosure, IP30 protection level
* Fan-free design to improve stability and service life
* Average trouble-free working time over 400,000 hours

  • Introduction
  • Specification
  • Dimension
  • Download
  • Order
  • Application

    CKP7224GM POE series industrial ethernet switch provides 24 POE ports, which can supply electricity for various devices and do not need wire. Support VLAN, STP/RSTP redundant network, SNMP and IGMP.


    IP30 aluminum case. MTBF  more than 400000hs.


    Speed:

    10/100/1000Mbps, IEEE 802.3 standard

    MAC;

    8K

    Delay:

    <96ns

    Cache:

    4Mb

    Method:

    Store and forward

    Priority:

    4

    Max. Frame:

    9600Byte

    Max. VLAN:

    4094

    IGMP:

    256

    MIB:

    MIB-IIEthernet-like MIBP-BRIDGE MIBQ-BRIDGE MIB

    Bridge MIBPrivate MIBRMON MIBGroup1, 2, 3, 9

    Power:

    Power 1, Power 2

    Interface:

    Link/ACT, Speed (RJ-45 Port), POE, SFP Slots

    Opitcal:

    SFP Dual fiberLC SFP single fiberLC, SC

    Electronical:

    RJ-45

    Power Type:

    D Type

    Optical Type:

    SFP

    Trans Distance:

    20KM,40KM,60KM,80KM, 100KM, 120KM

    Standard:

    IEEE 802.3af POE ,IEEE802.3at POE(optional)

    POE:

    IEEE 802.3af 48V 15.4W, IEEE 802.3 at 48V 30W

    POE PIN:

    V+:1,V+:2,V-:3,V-:6

    Relay:

    1A @24VDC

    Input

    90~264V AC

    Consumption:

    26W @220V AC (Switch)

    Dual Power:

    YES

    Over Load

    YES

    Case

    Aluminum case, no fan

    IP

    IP30

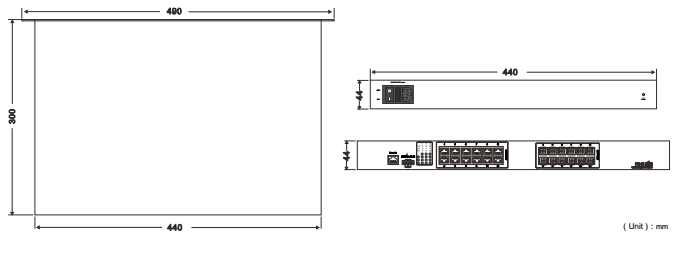

    Dimension (W×H×D)

    490 x 255 x 44mm

    Net Weight

    2850g

    Install

    DIN Rail/Wall-mount

    Working Temp.

    -40°C~85°C

    Storage Temp.

    -50°C~100°C

    Humidity

    5%~95%

    MTBF

    465,000 hrs

    EMI

    EMI FCC Part 15, EN55022 Class A

    EMS

    EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (EFT),

    EN 61000-4-5 (Surge), EN 61000-4-6 (RFI), EN61000-4-8 (100A/m)

    Impact

    IEC60068-2-27

    Anti-interferance

    IEC60068-2-32

    Free Fall

    IEC61000-6-2, IEC61850-3

    Safety

    CE/EN60950

    ROHS

    YES

      SelectProduct ModelDescribe
      CKP7224GM-2SFP-24POE+24x10/100/1000Base-T/Tx Ports,30W PoE 2x1000M SFP Slots
      CKP7224GM-2SFP-24POE24x10/100/1000Base-T/Tx Ports,15W PoE 2x1000M SFP Slots
