CK1011/CK1021 Serial|100M Compact Industrial Media Converter
CK1011/CK1021 Serial
Series Description: 100M Compact Industrial Media Converter

* 1~2 fast Ethernet ports, Auto-negotiation speed, auto Full/Half Duplex Mode, and auto MDI/MDI-X connection
* 100BaseFX ports ( SC connector default, FC/ST connector Optional ), Maximum 120km distance
* Wide range voltage 12~48V DC power input
* Metal housing with IP40 protection, support high EMC level
* DIN-Rail Mounting and Wall Mounting supported
* Wide Operating Temperature (-40~85℃) to satisfy harsh industrial environment

  • Introduction
  • Specification
  • Dimension
  • Download
  • Order
  • Application

    This series Industrial Fiber Optic Transceiver provide one or two 10/100Base-T(X) RJ45 and one 100Base-FX FC/ST optical port, support Auto-Negotiation and LED indicates.

    IP40 EMC case, DIN35 rail or wall mounting installation. DC12~48V input.

    *  Compliant with IEEE802.3/802.3u standard, store and foward mode
    *  Provide 1~2 10/100Base-T(X) RJ45 port, support Auto-Negotiation, MDI/MDI-X adaptive
    *  Provide 1 100Base-FX optical port, SC/FC/ST, Max. transmission distance 120KM
    *  IP40 EMC case

    *  10M:14881pps
    *  100M:148810pps
    *  Mode:Store and forward
    *  Bandwidth:800Mbps
    *  Cache:448Kbits
    *  MAC:1K

    *  12~48V DC input, 3Pin 7.62mm interface
    *  Empty load consumption:1.92W@24VDC
    *  Full load consumption:2.4W@24VDC
    *  Internal overcurrent protection

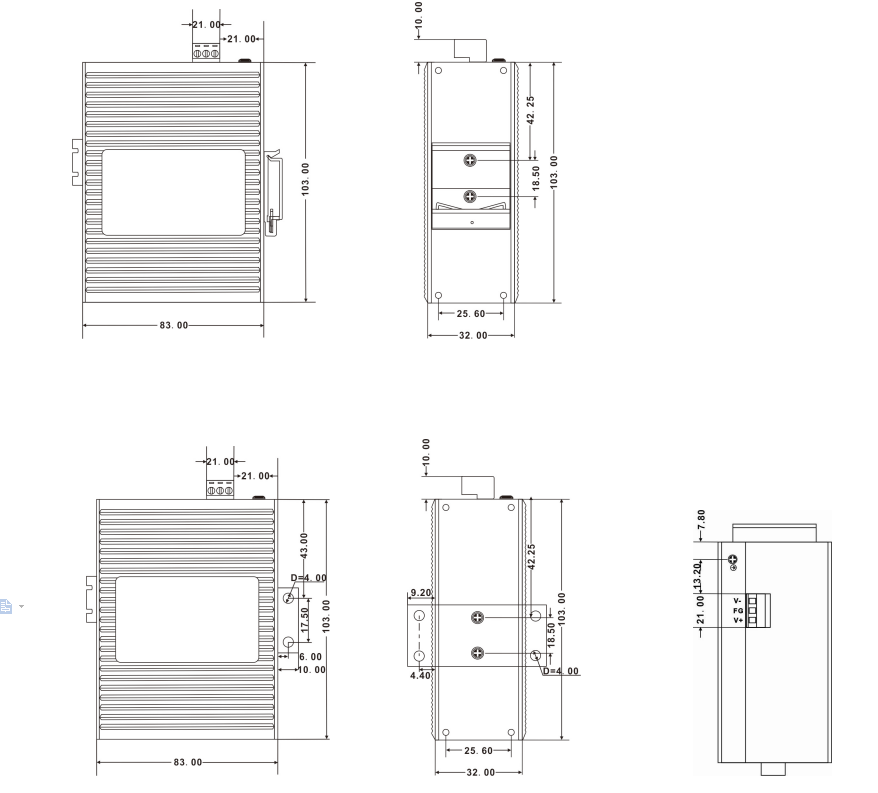

    *  Dimension(W×H×D):32mm×103mm×83mm
    *  Net weight:200g
    *  Case:IP40 metal case
    *  Install:DIN rail or wall mounting

    *  Work temperature:-40℃~85℃
    *  Store temperature:-40℃~85℃
    *  Relative Humidity:5%~95%(non-condensing)

    *  Warranty:5years

    SelectProduct ModelDescribe
    CK1011-M1*10/100Base-T(X)RJ45 port, 1*100Base-FX optic fiber port (multi mode 2KM/dual fiber), -40℃~85℃
    CK1011-S1*10/100Base-T(X)RJ45 port, 1*100Base-FX optic fiber port (single mode 20KM/dual fiber), -40℃~85℃
    CK1011-W1*10/100Base-T(X)RJ45 port, 1*100Base-FX optic fiber port (single mode 20KM/single fiber), -40℃~85℃
    CK1021-M2*10/100Base-T(X)RJ45 ports, 1*100Base-FX optic fiber port (multi mode 2KM/dual fiber), -40℃~85℃
    CK1021-S2*10/100Base-T(X)RJ45 ports, 1*100Base-FX optic fiber port (single mode 20KM/dual fiber), -40℃~85℃
    CK1021-W2*10/100Base-T(X)RJ45 ports, 1*100Base-FX optic fiber port (single mode 20KM/single fiber), -40℃~85℃
    DR-24-24P(Industrial Rail Power)1A DIN-Rail 24VDC output, 85~264VAC input
