The
1-channel RS-485/422 serial gateway adopts high-strength IP40 protective
casing, industrial-grade EMC design, support Auto-Negotiation Adaptive
Technology, provide a comprehensive LED status indicator, support
voltage 12~48V DC power input to increase the reliability of the
communication network. Provide 1~4 10/100Base-T (x) RJ45 port and
1-channel RS-485/422 serial port, can disperse the serial equipment, the
host and so on through the network simple, convenient centralized
management, the communication rate support 110~115200bps optional.
Built-in ModbusTCP and ModbusRTU protocol, the user can easily realize
Modbus Ethernet device and Modbus serial device connection. Based on
industrial installation requirements, the installation mode of DIN35
guideway is provided. This product adopts the industry's excellent
network program, -40~85℃ working temperature range, can satisfy all kinds of industrial site
requirements, provide convenient serial port communication solutions.
1~4*10/100BASE-T（X） RJ45 ports;
1*RS-422/485 ports;
Conforms to TCP, IP, UDP, ModbusTCP, ModbusRTU, ARP, ICMP, HTTP, and TFTP client protocols;
Supports Modbus Slave mode, the maximum support of 4 TCP master connections in Slave mode;
High strength IP40 shell and industrial-grade EMC design;
Support 12~48VDC power input;
Support DIN-Rail Mounting;
Operating temperature range: -40~85℃, suitable for industrial environment applications.
- Technical Standard
* Protocol: IEEE802.3、IEEE802.3u
Interfaces
* RJ45 port: 10/100BASE-T(X) auto-Negotiation speed, auto duplex mode and MDI/MDI-X connection;
* Serial port: RS-422 support RX-, RX+, TX-, TX+ full duplex working mode; RS-485 supports A and B half-duplex working mode; RS-485/422 Communication rate support 110~115200bps optional; Built-in ModbusTCP and ModbusRTU protocol, support Modbus Slave mode, Slave mode to maximize the support of 4 TCP master Connection; communication rate supports 300~115200bps optional.
Exchange
* Ten trillion forwarding speed:14881pps;
* Fast forwarding speed:148810pps;
* Transmission way:store-and-forward;
* Switching bandwidth:0.8Gbps;
* Buffer memory size:1Mbits;
* MAC address table:1K.
Serial Port
* Standard: RS-485/422;
* RS-422 signal: TX+, TX-, RX+, RX-, GND;
* RS-485 signal: D+, D-, GND;
* Check digit: None, Even, ODD;
* Data bits: 5bit, 6bit, 7bit, 8bit;
* Stop bit: 1bit, 2bit;
* Baud rate: 110~115200bps;
* Directional control: RS-485 adopts data flow control technology;
* Load capacity: RS-485/422 side supports 32 point polling environment (customizable 128 points);
* Interface form: RS-485/422 end adopts 5-bit 5.08mm spacing terminal;
* Interface protection: 1000V surge protection.
Indicator
* Power indicator: PWR;
* System running indicator: SYS;
* Serial port data status indicator: COM.
Power
* Input: Wide DC power input 12~48VDC (12V/24V/48V typical) with 7.62mm industrial power terminal;
* No-load Consumption：< 1.2W (@24VDC) ;
* Full-load Consumption：< 1.68W (@24VDC) .
Machine

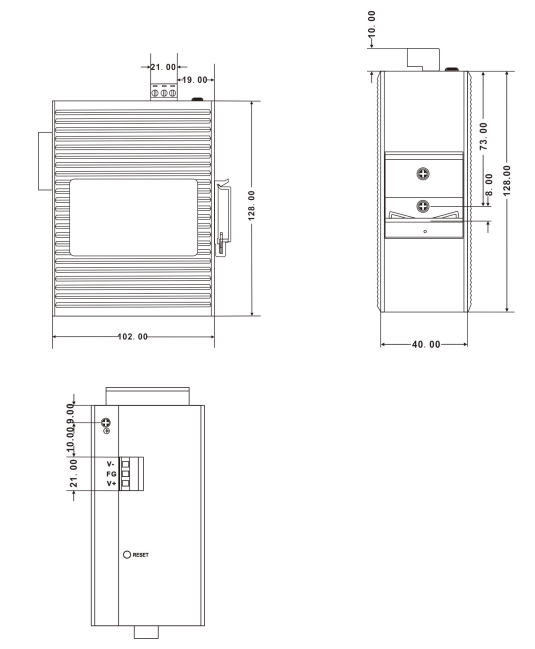

* Dimension(W×H×D): 40mm×128mm×102mm;
* Net weight: 300g;
* Housing: Metal, IP40 protection;
* Installation: DIN rail mounting.
Environment
* Working temperature:-40℃~85℃;
* Storage temperature: -40℃~ 85℃;
* Relative humidity: 5% ~ 95% (no condensing) .
Warranty
* 5 years
Certificates:
* IEC61000-4-2(ESD)：±8KV Contact, ±15KV Air
* IEC61000-4-3(RS)：10V/M(80-1000MHZ)
* IEC61000-4-4(EFT)：Power ±4KV, Data Cable ±4KV
* IEC61000-4-5(Surge)：Power ±4KV CM/ ±1KV DM, Data Cable±4KV
* IEC61000-4-6(CS)：3V (10KHZ-150KHZ), 10V (150KHZ-80MHZ)
* IEC61000-4-16(MS)：30V COUNT 300V, 1S
* IEC60068-2-6(Vibration)
* IEC60068-2-27(Shock)
* IEC60068-2-32(Free Fall)
* IEC61000-6-2(General Industrial Standard)
Package List
* 1-channel RS-485/422 Serial Gateway
* Product Manual
* Product Warranty
Typical application:
