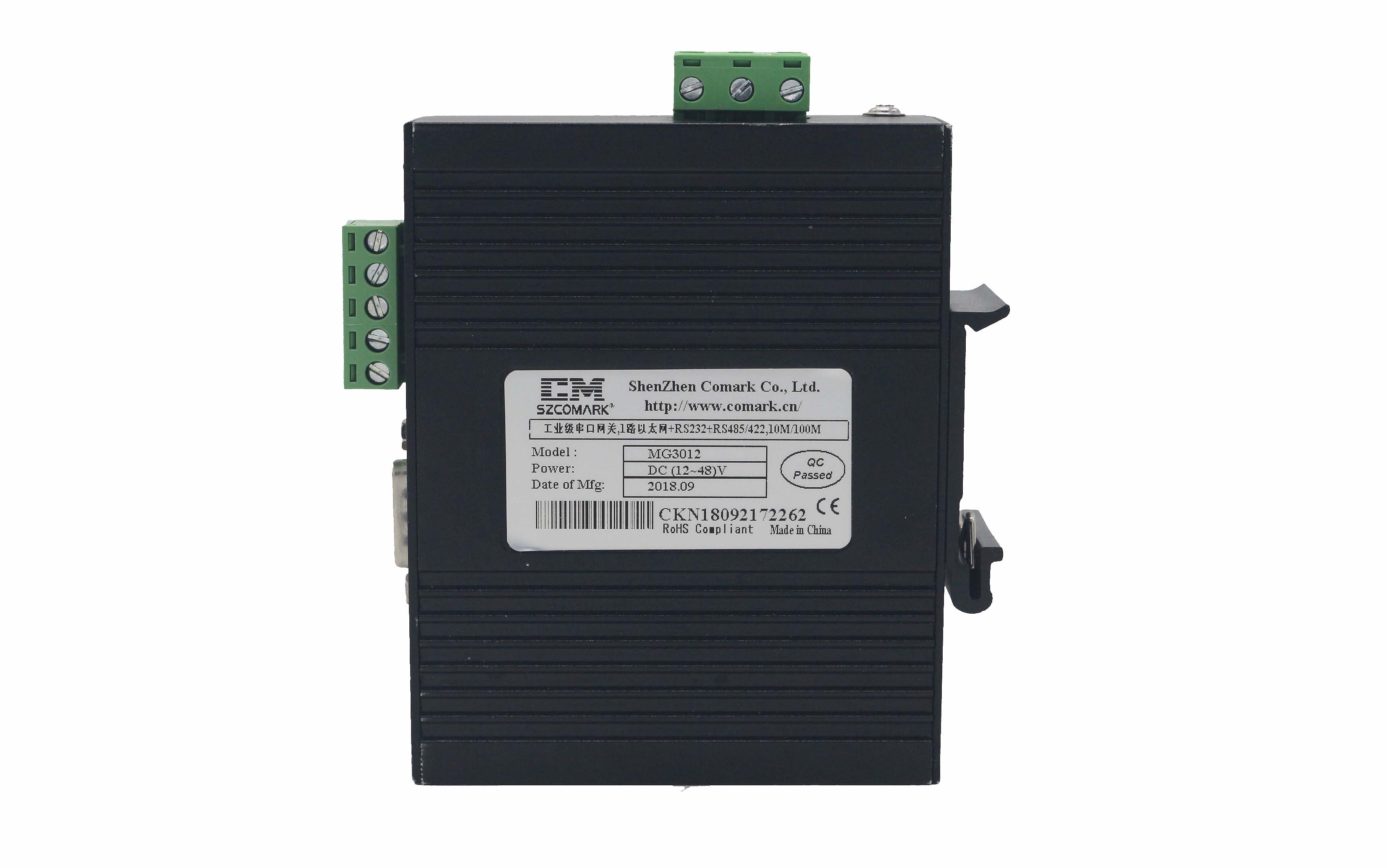

- The SE3012 serial port server adopts high-strength IP30 protective casing, industrial-grade EMC design, support Auto-Negotiation Adaptive Technology, provide a comprehensive LED status indicator, support voltage 12~48V DC power input to increase the reliability of the communication network. Provide 1 10/100Base-T (x) RJ45 port, 1-channel RS-485/422 serial port and 1-channel RS-232 serial port, can disperse the serial equipment, the host and so on through the network simple, convenient centralized management, the communication rate support 110~115200bps optional. Based on industrial installation requirements, the installation mode of DIN35 guideway is provided. This product adopts the industry's excellent network program, -40~85℃ working temperature range, can satisfy all kinds of industrial site requirements, provide convenient serial port communication solutions.
Features
* Conform to IEEE802.3/802.3u standard, store and forward Exchange Mode;
* Provide 1 10/100Base-T (x) RJ45 Ethernet interface, support Auto-Negotiation technology, automatic negotiation work rate (10M/100M) and duplex mode (half duplex/ full duplex), MDI/MDI-X Adaptive;
* Provide 1-channel RS-485/422 serial port and 1-channel RS-232 serial port, provide TCP server, TCP client, UDP three serial transmission mode, 110~115200bps line speed non-blocking communication;
* Conforms to TCP, UDP, ARP, ICMP, HTTP, and TFTP client protocols;
* Support Web management;
* Support serial port settings, can be connected through the network two serial devices for serial data transmission;
* Supports gateway, cross-routing communication;
* low-power consumption design;
* Metal housing with IP30 and high level EMC protection
* Support wide range voltage 12~48V DC power input and over-current protection function;
* Work in -40~85℃ wide temperature.
- Technical Standard
* Protocol: IEEE802.3, IEEE802.3u

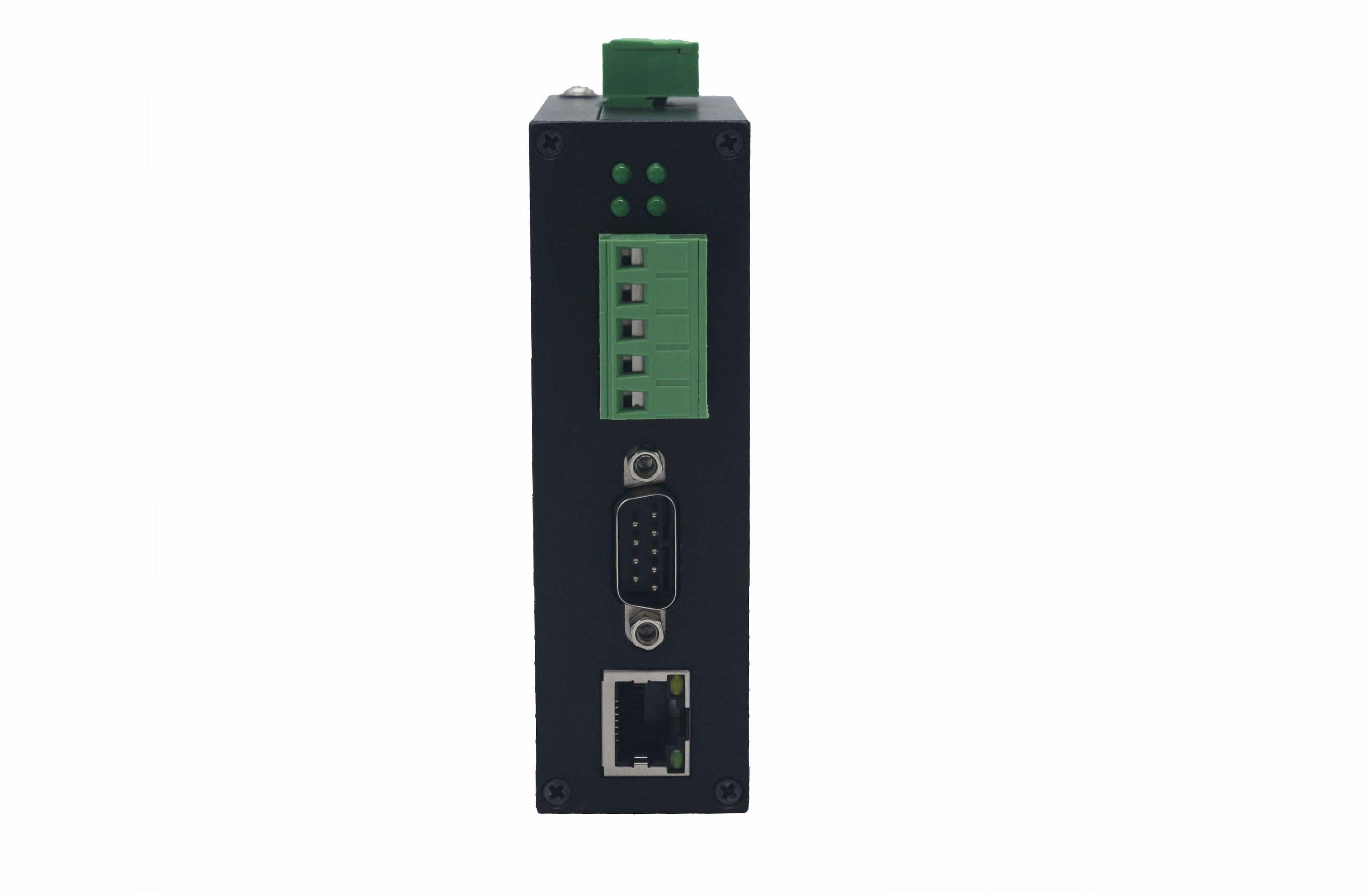

Interfaces
* RJ45 port: 10/100BASE-T(X) auto-Negotiation speed, auto duplex mode and MDI/MDI-X connection;
* Serial port: RS-422 supports RX-, RX+, TX-, TX+ full duplex working mode; RS-485 supports A and B half-duplex working mode; RS-232 supports RXD, TXD, GND full duplex working mode; RS-485/422/232 Communication rate support 110~115200bps optional.
Ethernet Attribute
* Standard: 10Base-T, 100Base-TX;
* Protocol: Supports TCP, UDP, ARP and ICMP protocol;
* Signal: Rx-, Rx+, Tx-, Tx+;
* Rate: 10M/100Mbps;
* Duplex mode: Full duplex or Half duplex;
* Interface cache: Maximum support for 1Mbits cache;
* Interface form: RJ45.
Serial Port Attribute
* Standard: RS-485/422/232;
* RS-422 signal: TX+, TX-, RX+, RX-, GND;
* RS-485 signal: A, B, GND;
* RS-232 signal: TXD, RXD ,GND;
* Check digit: None, Even, Odd, Mark, Space;
* Data bits: 5bit, 6bit, 7bit, 8bit;
* Stop bit: 1bit, 2bit;
* Baud rate: 110~115200bps;
* Directional control: RS-485 adopts data flow control technology;
* Load capacity: RS-485/422 side supports 32 point polling environment (customizable 128 points);
* Interface form: RS-485/422 and adopts 5-bit 5.08mm spacing terminal, RS-232 and adopts DB9-M interface;
Indicator Lamp
* Power indicator: PWR;
* System running indicator: RUN;
* RS-232 Serial Port Data Status indicator: RS-232;
* RS-485/422 Serial Port Data Status indicator: RS-485/422.
Power Supply
* Input: Wide DC power input 12~48VDC (12V/24V/48V typical) with 7.62mm industrial power terminal;
* Power: < 1.44W (@24VDC).
Mechanical Properties

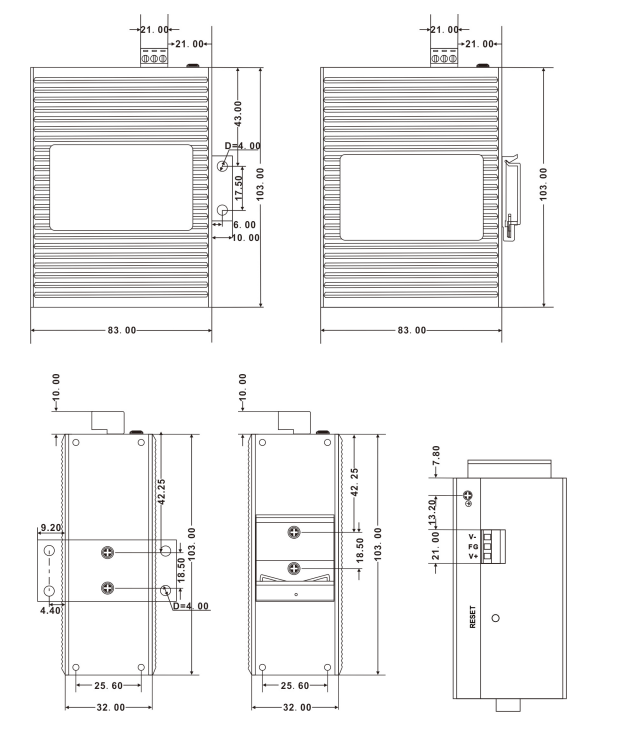

* Dimension(W×H×D): 32mm×103mm×83mm;
* Net weight: 200g;
* Housing: Metal, IP30 protection;

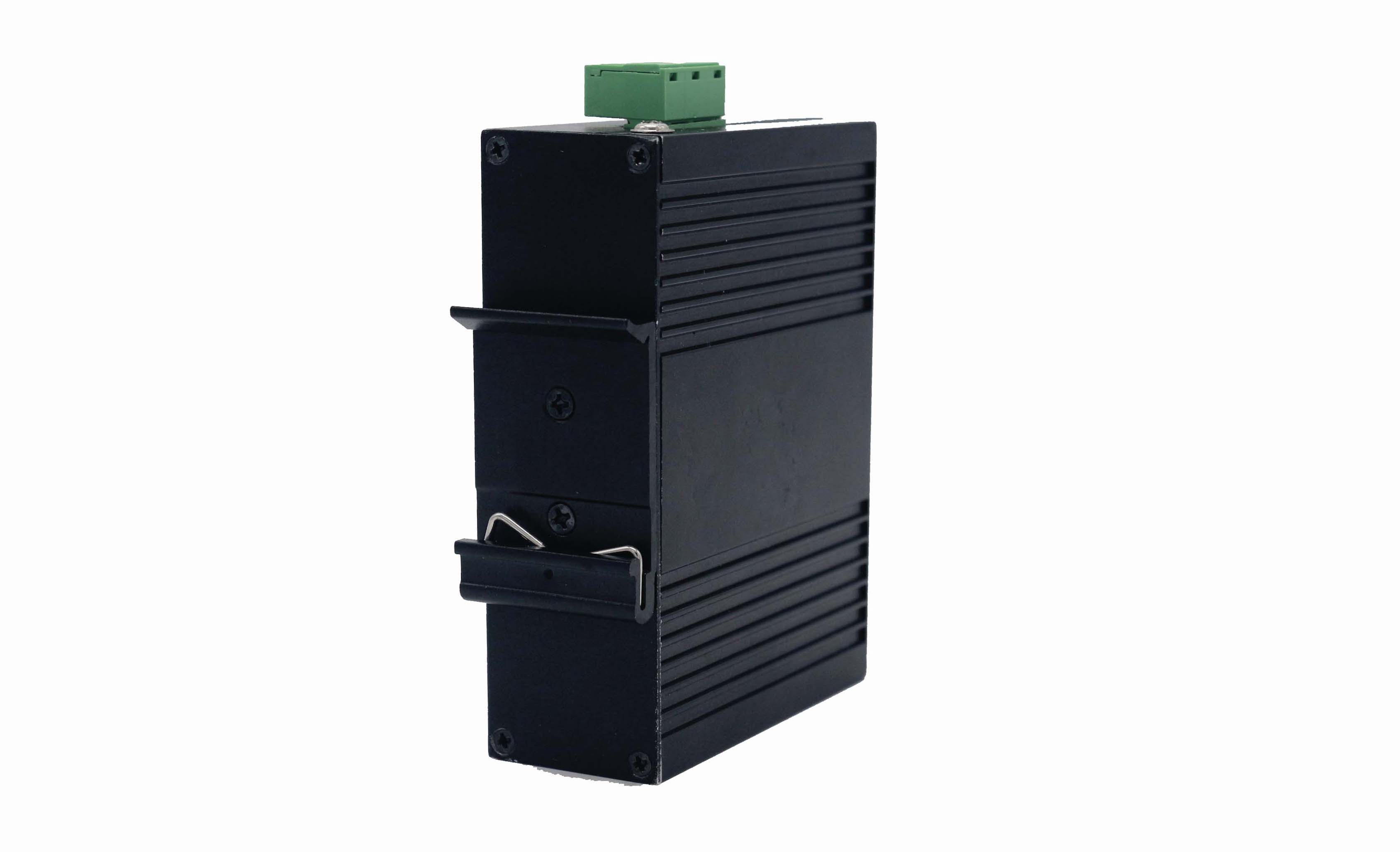

* Installation: DIN rail mounting.
Operating Environment
* Working temperature:-40℃~85℃;
* Storage temperature: -40℃~ 85℃;
* Relative humidity: 5% ~ 95% (no condensing) .
Warranty
* 5 years.
