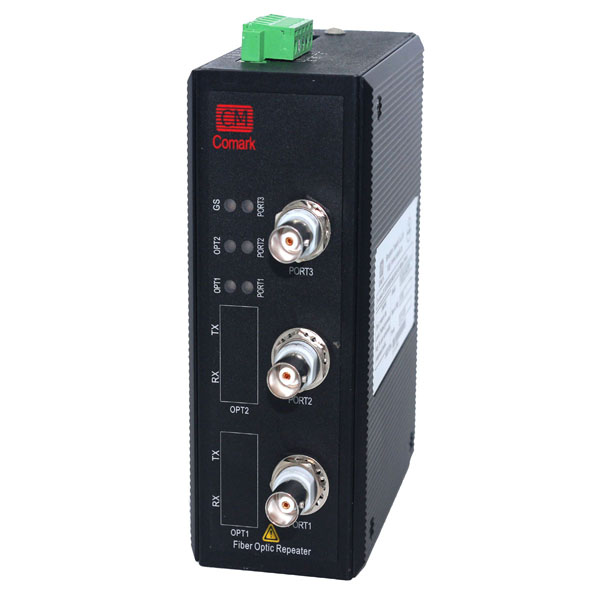

Ci-CC30 Series
Series Description: ControlNet Bus HUB Repeater

* Support 3 ControlNet bus, according to ControlNet Protocol ,Baud Rates:5Mbps
* 3 Ports HUB function, support star link and extend the ControlNet Fieldbus transmission distance
* Support Dial switch for setting communication rate(all ports baud rate must be same)
* Support 3Chs photon coupled isolation ports, Isolated Voltage 1000V, and 4000V Anti-thunder protection
* Support 4 dual colors LED Indicator, Fieldbus ports error Relay alarm output
* DC (9~36V) dual redundant power input, With DC 1500V voltage isolation and reverse connect protection
* IP40 protection, Metal case (wave grain aluminum reinforce case option), 35mmDIN-Rail Installation
* Operating Temperature: -40℃ to 75℃ suitable to various Industrial work situation

  • Introduction
  • Specification
  • Dimension
  • Download
  • Order
  • Application
         This series is designed for industrial grade ControlNet HUB Repeater, support ControlNet protocol, Support 3 Chs Fieldbus serial ports data communication, Hub repeater and star link. It can extend the ControlNet Fieldbus transmission distance, change fieldbus diagram, at same time, it has photon coupled isolation and Anti signal interference functions, Baud rate can be set via DIP. The product is Industrial grad designed, Casing: IP40 protection, wave grain aluminum reinforce case option, DIN rail mounting, DC(9~36V) power input, support Fieldbus ports error Relay alarm output, dual redundant power input and isolation protection. -40~75℃Operating Temperature, can meet various Industrial situation.
    Bus data interface
    * Interface type: BNC-F coaxial cable interface, conform to ControlNet protocol standard
    * Support ControlNet bus standard
    * Baud Rates:5Mbps
    * Signal Delay (electrical interface): ≤1.2us
    * Isolated voltage 1000V,4000V Anti-thunder protection
    * Resistor: without terminal resistor, connect external when necessary

    Power
    * DC (9~36V) dual redundant power input, industrial standard voltage DC 24V, consumption is less than 4W, With DC 1500V voltage isolation and reverse connect protection, adopt 5 cores 5.08mm industrial terminal port (please use industrial standard power, otherwise it will occur unit error or damage).

    Protection
    * Relay: Fieldbus ports error Relay alarm output
    * Contact rating: 1A @24V DC, Industrial Terminal port

    Mechanical

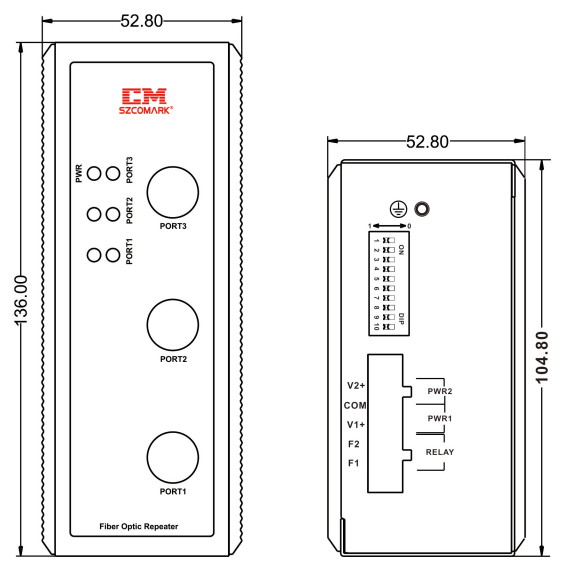

    * Dimensions (H×D×W): 136mm×104.8mm×52.8mm
    * Weight:800g
    * Casing: IP40 protection, wave grain aluminum reinforce case option
    * Installation: Wall mounting or DIN rail mounting

    Environmental
    * Operating Temperature:-40℃~75℃(-40℃~85℃ optional)
    * Storage Temperature: -40℃~85℃
    * Ambient Relative Humidity: 5%~95%(non-condensing)

    Warranty
    * 5 years
    SelectProduct ModelDescribe
    Ci-CC303xControlNet ports, 5Mbps
