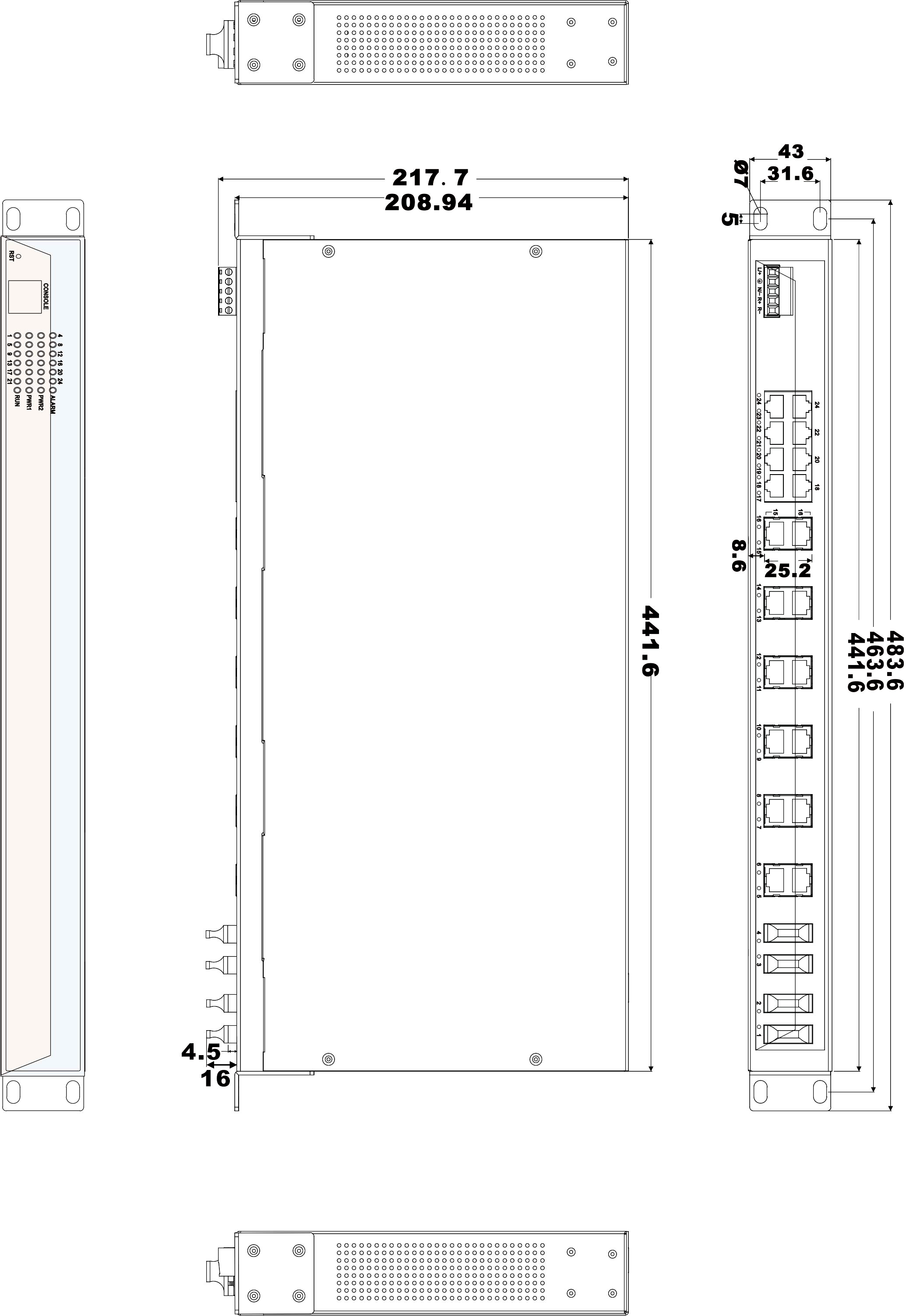

- Dimension
- Download
- Order
- Application
- This series industrial ethernet switch provides 12~24*10/100Base-T(X) RJ45 and 12~24*100Base-FX optical ports(SC/FC/ST).
Specification:
* Standard: IEEE802.3, 802.3u, 802.3x ，IEEE802.3x
* MAC: 1K
* Ports: RJ45, 10/100BaseT(X) adaptive, Full/Semi-Duplex, Auto MD/MDIX connection
* Relay: 1A @ 24 VDC
* Fiber: 100Mbit/s Multi mode: 0 ~ 5 km, 1310 nm, Single mode: 0 ~ 30 km, 1310 nm
* Power: 48 VDC,220VAC, redundant input, 0.25A@DC24V
* Consumption:<5 W
* Case: IP40 metal case
* Install: 19" rack mount
* Working Temperature: -35 ~ 75°C
* Storage Temperature: -40 ~ 85°C
* Humidity: 5% ~ 95%
Certificate:
* UL60950 (E212360), UL 508, CSA C22.2 No. 60950，
* EMI ：FCC Part 15, CISPR (EN55022) class A ，
* EMS：IEC-61000-4-2 (ESD), Level 3
IEC-61000-4-3 (RS), Level 3
IEC-61000-4-4 (EFT), Level 3
IEC-61000-4-5 (Surge), Level 3
IEC-61000-4-6 (CS), Level 3
* IEC60068-2-27
* IEC60068-2-32
* IEC60068-2-6
* MTBF：200,000hs
