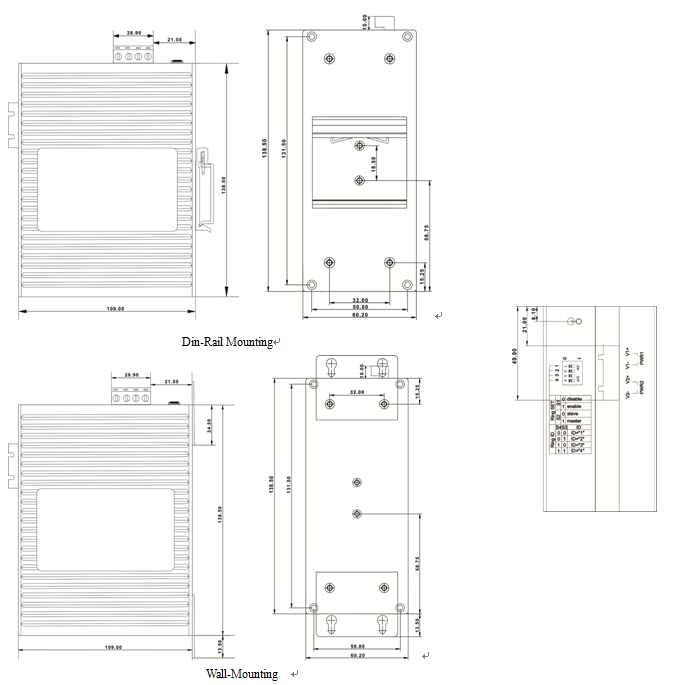

- Dimension
- Download
- Order
- Application
- 6-Port Giga Light Ring Ethernet Switch is designed with IP40 metal housing and high level EMC protection, supports Auto-Negotiation speed, redundant dual power inputs with wide range voltage, and DIN35 rail-mounting for the different industrial circumstances, furthermore, the innovative Light CK-Ring can improve the reliability and reduce the cost of networking at the same time.
- Technical Standard
* Protocol:IEEE802.3、IEEE802.3u
Interface
* RJ45 port: 10/100/1000BaseT(X) speed Auto-Negotiation, Full/Half Duplex mode, MDI/MDI-X connection
* Fiber port: 0~2 SFP port, 1000M optic fiber or RJ45 interface module optional
Switching Characteristic
* 10M Frame Forward Rate:14881pps
* 100M Frame Forward Rate:148810pp
* 1000M Frame Forward Rate: 1488096 pps s
* Forward Mode:store-and-forward
* Switching Bandwidth:12Gbps
* Cache Size:2Mbits
* MAC Address Table:8K
Power Supply
* Input: Redundant dual DC power inputs (12V/24V/48V) with 7.62mm industrial power terminal
* Full-load Consumption:< 7.2W (@24VDC)
Physical Characteristic
* Dimensions(W×H×D):40mm×120mm×100mm
* Weight:600g
* Housing: Metal, IP40 protection
* Installation: Wall mounting or DIN rail mounting
Environment Limits
* Work Temp:-40℃~85℃
* Storage Temp:-40℃~85℃
* Relative Humidity:5%~95%(non-condensing)
Warranty
* Warranty Period: 5 years
