Rate:

10/100/1000Mbps bases on IEEE 802.3

MAC:

8K

Delay:

<96ns

Cache:

4Mb

Mode:

Store and forward

Priority List:

4

Max. Frame

9600Byte

Max. VLAN

4094

IGMP

256

MIB

MIB-II、Ethernet-like MIB、P-BRIDGE MIB、Q-BRIDGE MIB、

Bridge MIB、Private MIB、RMON MIB、Group1, 2, 3, 9

POWER

Connecter:

Link/ACT, Speed (RJ-45 Port), POE, SFP Slots

Optical:

SFP Dual fiber：LC SFP single fiber：LC, SC

Electronical:

RJ-45

Power head:

D Type

Optical：

SFP

Distance:

20KM,40KM,60KM,80KM, 100KM, 120KM

Standard:

IEEE 802.3

Relay:

1A @24VDC

Input:

90~264V AC

Consumption：

26W @220V AC

Dual Power:

YES

Overload Protect:

YES

Case:

Metal

IP:

IP30

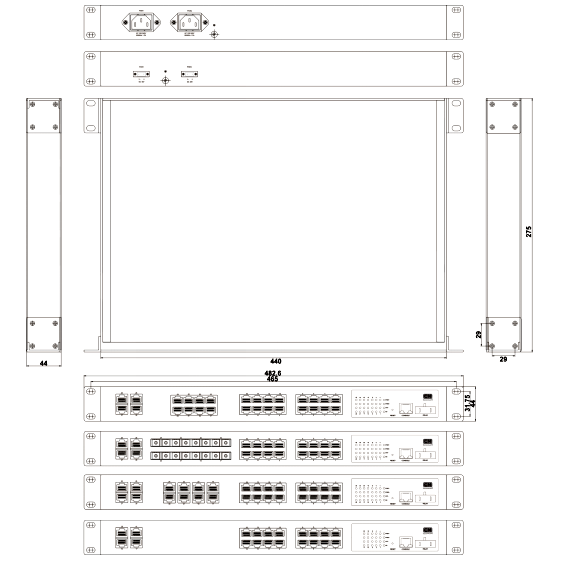

Dimension:(W×H×D)

490 x 255 x 44mm

Net Weight:

2850g

Install:

Rack mount

Working Temperature:

-40°C~85°C

Storage Temperature:

-50°C~100°C

Humidity:

5%~95% (no condensing)

MTBF:

465,000 hrs

EMI:

EMI FCC Part 15, EN55022 Class A

EMS:

EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (EFT),

EN 61000-4-5 (Surge), EN 61000-4-6 (RFI), EN61000-4-8 (100A/m)

Impact

IEC60068-2-27

Anti-interference

IEC60068-2-32

Free Fall

IEC61000-6-2, IEC61850-3

Safety

CE/EN60950

ROHS

YES
