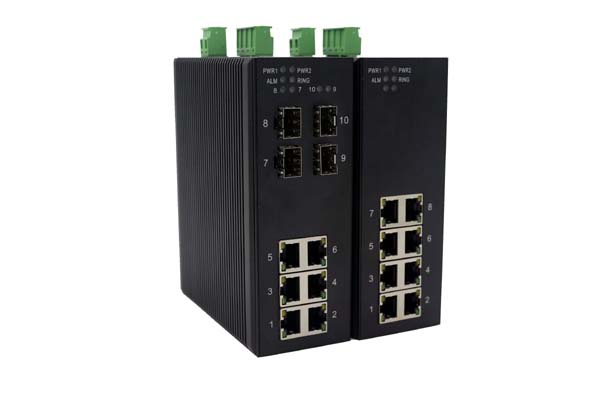

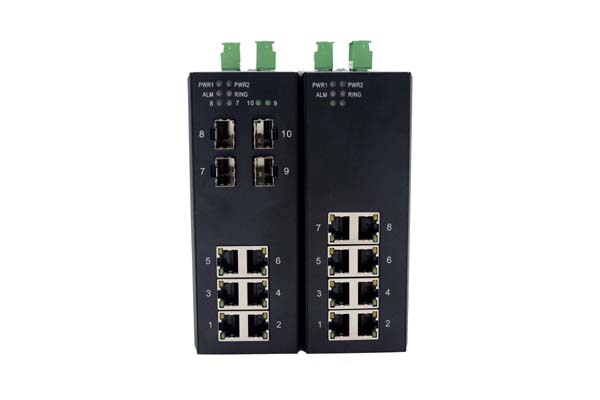

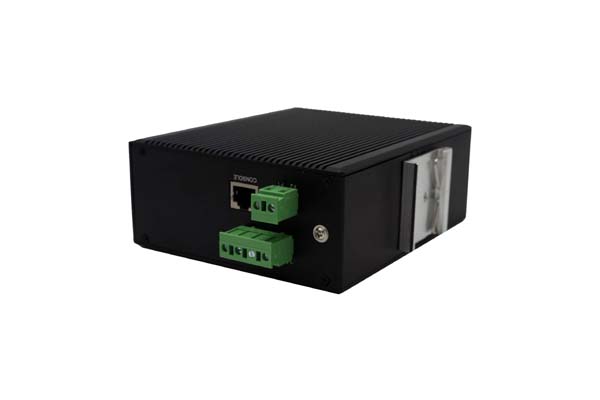

- 10-Port Giga
Unmanaged Ethernet Switch is designed with IP40 protection metal housing, and
supports EMC industrial level 3, redundant dual inputs with wide range
voltage(12~48V DC), 2~8*10/100/1000BaseT(X) RJ45 ports and 0~8*1000M SFP ports
combined flexibly, DIN35 rail or wall mounting for different industrial
circumstances.
- Basic Switching Features
* IEEE802.3/802.3u/802.3ab, store-and-forward switching
* 2~8*10/100/1000BaseT(X) RJ45 ports, Auto-Negotiation speed(10M/100M/1000M),auto Duplex mode and MDI/MDI-X connection
* 0~8*1000M SFP port, 1000M optic fiber or RJ45 interface module optional
* Metal housing with IP40 protection and EMC industrial level 3
* Wide range power voltage with 12~48V DC inputs, full load power consumption less than 11W
* Working temperature range of -40~85℃ * Working temperature range of -40~85℃
Interfaces
* RJ45 port: 10/100/1000BaseT(X) auto negotiate speed, Full/Half Duplex, MDI/MDI-X connection
* SFP port: 1000M SFP port, 1000M optic fiber or RJ45 interface module optional
* Power: Dual inputs, 2 pluggable four pins power terminal
Exchange Property
* Ten trillion forwarding speed:14881pps
* Fast forwarding speed:148810pps
* Gigabit forwarding speed: 1488095pps
* Transmission way: Store-and-forward.
* Switching bandwidth:20Gbps
* Buffer memory size:2Mbits
* MAC address table:8K
Power Requirements
* Dual redundant inputs with wide range voltage (12~48V DC), typical 12V/24V/48V
* Full load power consumption less than 11W
* Overload-Current protection
Physical Characteristics
* Dimensions (W x H x D): 51.5mm×150.5mm×125.5mm
* Weight: 900 g
* Housing: Metal, IP40 protection
* Installation: Wall mounting or DIN rail mounting
Environment Limits
* Work Temp.: -40℃~85℃
* Storage Temp.: -40℃~85℃
* Relative Humidity: 5%~95% (non-condensing)
Warranty
* Warranty Period: 5 years
Standard and Certifications
* IEC61000-4-2(ESD): ±8KV touch, ±15KV atmosphere
* IEC61000-4-3(RS): 10V/m (80-1000MHZ)
* IEC61000-4-4(EFT): power cable ±4KV, data cable ±2KV
* IEC61000-4-5(Surge): power cable ±2KV CM/±1KV DM, data cable: ±4KV
* IEC61000-4-6(CS): 3V (10KHZ-150KHZ), 10V(150KHZ-80MHZ)
* IEC61000-4-8(MS): 100A/M COUNT 1000A/M, 1S TO 3SI
* IEC61000-4-12/18(HFRD): 2.5KV CM, 1KV DM
* IEC61000-4-10(DP): 30A/M
* IEC61000-4-16(CM): 30V COUNT 300V, 1S
* IEC61000-6-2, IEC61850-3, IEEE1613
* EN50121-4
