- 10-Port POE Ethernet Switch is designed with EMC industrial IP40 housing, redundant dual inputs DC46~52V, provide 8 10/100BaseT(X) RJ45 ports with POE and 0~2 1000BaseF(X) SPF ports, the POE can output power up to 30W per port and support IEEE802.3 at/af, reduce the power cable and cost for your industrial application and solution.
Managed POE Switch Features
* Support Web, CLI and SNMP management, CLI support Telnet or Console
* POE management with WEB GUI
* Port setting, e.g., Enable/disable the port, speed or mode setting, flow control
* Port Mirroring to debug online or monitor the data status
* Rate-limit to optimize the bandwidth of network
* Port trunking to expand the bandwidth and improve the efficiency of the network
* QoS setting to improve the quality of the service
* Port MAC-address learning and statistics
* 802.1Q VLAN to control multicast domain
* Unicast/multicast MAC-address management
* IGMP Snooping to filter multicast traffic
* SNMP V1/V2C/V3 improve the security of network management
* RSTP to avoid indefinite message copy in the ring
* Auto-recovery redundant CK-Ring (full-load failure recovery time < 20ms), supports Single-Ring, Tangency-Ring and Intersection-Ring
* Warning by relay output
* Rich network system management
- Interface
* RJ45 ports:10/100BaseT(X) auto negotiate speed, Full/Half Duplex, MDI/MDI-X connection
* PoE wiring: Power on unused lines, V+ on pin 4 and 5, V- on pin 7 and 8 ( Endspan Mode B)
* SFP ports: 1000BaseSFP Fiber ports, support Gigabit SFP fiber module or 1000BASE-T Copper SFP Module(RJ45)
* Relay output (Managed model only): 2-pin relay industrial terminal, contact capability 1A@24VDC
* Power input: 4-pin pluggable 7.62mm industrial power terminal
Power Supply
* Dual redundant inputs with 46~52V DC wide range voltage, typical 48V
* Overload-Current protection
Relay
* Relay output：Port, power or ring failure warning output
* Contact Capability: 1A@24VDC
Physical Characteristics

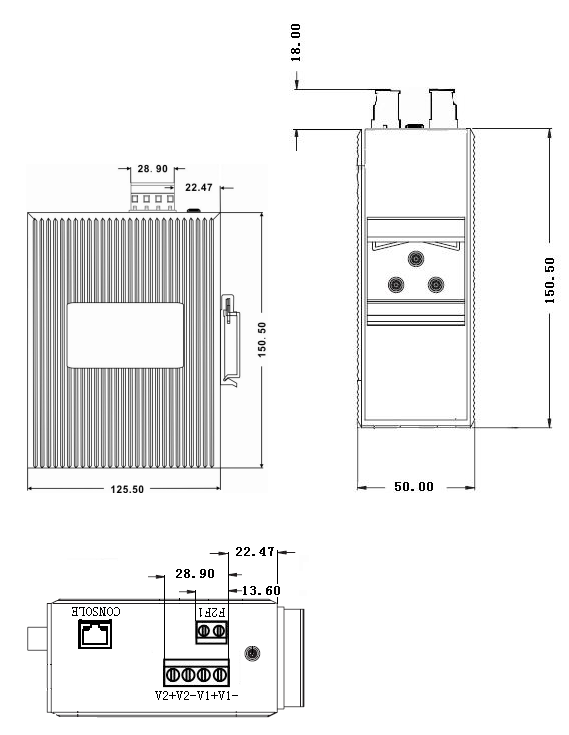

* Dimensions ( L x W x H ): 50mm×150.5mm×125.5mm
* Weight: 900g
* Case: Metal, IP40
* Installation: Wall mounting or DIN rail mounting
Environment
* Operating Temp: -40℃~60℃
* Storage Temp: -40℃~85℃
* Relative Humidity: 10%~95% (non-condensing)
Standards and Certificates
* IEC61000-4-2(ESD): ±6KV touch,±15KV air
* IEC61000-4-3(RS): 10V/M (80-1000MHZ)
* IEC61000-4-4(EFT): Power cable ±4KV, data cable ±4KV
* IEC61000-4-5(Surge): Power cable ±2KV CM/±1KV DM, data cable ±2KV
* IEC61000-4-6(CS): 3V(10KHZ-150KHZ), 10V(150KHZ-80MHZ)
* IEC61000-4-8(MS): 100A/M COUNT 1000A/M,1S TO 3S
* IEC61000-4-12/18(HFRD): 2.5KV CM,1KV DM
* IEC61000-4-10(DP): 30A/M
* IEC61000-4-16(CM): 30V COUNT 300V,1S
* IEC61000-6-2, IEC61850-3, IEEE1613
* EN50121-4
