Speed:

10/100/1000Mbps, IEEE 802.3 standard

MAC;

8K

Delay:

<96ns

Cache:

4Mb

Method:

Store and forward

Priority:

4

Max. Frame:

9600Byte

Max. VLAN:

4094

IGMP:

256

MIB:

MIB-II、Ethernet-like MIB、P-BRIDGE MIB、Q-BRIDGE MIB、

Bridge MIB、Private MIB、RMON MIB、Group1, 2, 3, 9

Power:

Power 1, Power 2

Interface:

Link/ACT, Speed (RJ-45 Port), POE, SFP Slots

Opitcal:

SFP Dual fiber：LC SFP Single fiber：LC, SC

Electronical:

RJ-45

Power Type:

Terminals, with fix screw

Optical Type：

SFP

Trans Distance：

20KM,40KM,60KM,80KM, 100KM, 120KM

Standard:

IEEE 802.3af POE (optional)

POE:

IEEE 802.3af 48V 15.4W, IEEE 802.3 at 48V 30W

POE PIN:

V+:1,V+:2,V-:3,V-:6

Relay:

1A @24VDC

Input

12~48V DC (POE 48V DC) Dual12~48V DC (POE 48V DC)

Consumption：

9W @48V DC (Switch) 10W @48V DC (Switch)

Dual Power:

YES

Over Load

YES

Case

Aluminum case, no fan

IP

IP40

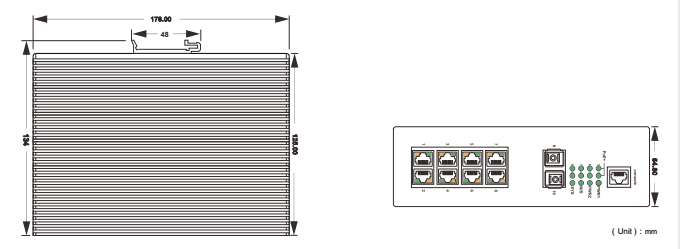

Dimension (W×H×D)

135 x91.6 x 36mm 176 x125 x 54.8mm

Net Weight

550g 1050g

Install

DIN Rail/Wall-mount

Working Temp.

-40°C~85°C

Storage Temp.

-50°C~100°C

Humidity

5%~95%

MTBF

435,000 hrs

EMI

EMI FCC Part 15, EN55022 Class A

EMS

EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (EFT),

EN 61000-4-5 (Surge), EN 61000-4-6 (RFI), EN61000-4-8 (100A/m)

Impact

IEC60068-2-27

Anti-interferance

IEC60068-2-32

Free Fall

IEC61000-6-2, IEC61850-3

Safety

CE/EN60950

ROHS

YES
