CK5062/5071/5080 Serial|8-Port 100M Light Ring Ethernet Switch
CK5062/5071/5080 Serial
Series Description: 8-Port 100M Light Ring Ethernet Switch

* 6~8 fast Ethernet ports, Auto-negotiation speed, auto Full/Half Duplex Mode, and auto MDI/MDI-X connection
* 0~2 100BaseFX ports ( SC connector default, FC/ST connector Optional ), Maximum 120km distance
* Light CK-Ring with simple DIP-Switch setting
* Wide range voltage 12~48V DC power input
* Metal housing with IP40 protection, support high EMC level
* DIN-Rail Mounting and Wall Mounting supported
* Wide Operating Temperature (-40~85℃) to satisfy harsh industrial environment

  • Introduction
  • Specification

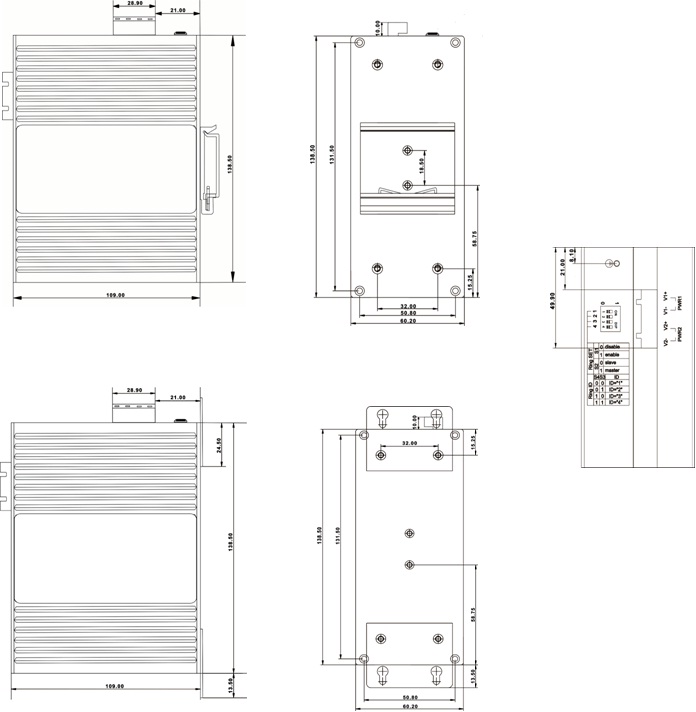

  • Dimension
  • Download
  • Order
  • Application
         8-Port 100M Light Ring Ethernet Switch is designed with IP40 metal housing and high level EMC protection, supports Auto-Negotiation speed, redundant dual power inputs with wide range voltage, and DIN35 rail-mounting for the different industrial circumstances, furthermore, the innovative Light CK-Ring can improve the reliability and reduce the cost of networking at the same time


    Support 802.3/802.3u, store-and-forward switching
    * 6~8 10/100Base-T(X) RJ45 ports, support Auto -Negotiation speed (10M/100M ), auto Full Duplex/ Half Duplex mode, auto MDI/MDI-X connection
    * 1~2 100BaseFX Fiber ports (default SC port, FC/ST port optional), max distance to 120km
    * Light CK-Ring compatible with CK-series managed Ethernet Switch(recovery time < 20ms, single ring only)
    * Metal housing with IP40 and high level EMC protection
    * Redundant dual power voltage with 12~48V DC input
    * Work in -40~85℃ wide temperature

    Technical Standard
    * Protocol:IEEE802.3、IEEE802.3u

    * RJ45 port: 10/100BaseT(X) speed Auto-Negotiation,  Full/Half Duplex mode, MDI/MDI-X connection
    * Fiber port: 100BaseFX Full Duplex SC port (with FC/ST options ), max distance to 120km

    Switching Characteristic
    * 10M Frame Forward Rate:14881pps
    * 100M Frame Forward Rate:148810pps
    * Forward Mode:store-and-forward
    * Switching Bandwidth:1.6Gbps
    * Cache Size:1Mbits
    * MAC Address Table:2K

    Power Supply
    * Input: Redundant dual DC power inputs (12V/24V/48V) with 7.62mm industrial power terminal
    * Full-load Consumption:< 5.16W (@24VDC)

    Physical Characteristic
    * Dimensions(W×H×D):60.2mm×138.5mm×109mm
    * Weight:600g
    * Housing: Metal, IP40 protection
    * Installation: Wall mounting or DIN rail mounting

    Environment Limits
    * Work Temp:-40℃~85℃
    * Storage Temp:-40℃~85℃
    * Relative Humidity:5%~95%(non-condensing)

    * Warranty Period: 5 years

    Standards and Certifications
    * IEC61000-4-2(ESD):±8KV Contact, ±15KV Air
    * IEC61000-4-3(RS):10V/M(80-1000MHZ)
    * IEC61000-4-4(EFT):Power ±4KV, Data Cable ±2KV
    * IEC61000-4-5(Surge):Power ±4KV CM/ ±2KV DM, Data Cable±4KV
    * IEC61000-4-6(CS):3V (10KHZ-150KHZ), 10V (150KHZ-80MHZ)
    * IEC61000-4-16(MS):30V COUNT 300V, 1S
    * IEC60068-2-6(Vibration)
    * IEC60068-2-27(Shock)
    * IEC60068-2-32(Free Fall)
    * IEC61000-6-2(General Industrial Standard)
    SelectProduct ModelDescribe
    CK50626*10/100Base-T(X)RJ45, 2*100Base-FX optical port, suport ring network
    CK50717*10/100Base-T(X)RJ45, 1*100Base-FX optical port, support ring network
    CK50808*10/100Base-T(X)RJ45, support ring network
