Ci-AA21/DD21/OO21 Series
Series Description: CAN BUS/DeviceNet/CANOpen Redundant Link Module

* Support including CAN 2.0A&CAN2.0B 32 kinds of reserve rate of communication
* DeviceNet、CANOpen Bus support Dial switch for setting communication rate or rate adaptive
* Support 3Chs photon coupled isolation ports, Isolated Voltage 1000V
* The unit has 120 ohms, use corresponding switch to make it to be enable, provide 4000V lightning protection function
* Support 4 dual colors LED Indicator, Fieldbus ports error Relay alarm output
* DC (9~36V) dual redundant power input, With DC 1500V voltage isolation and reverse connect protection
* IP40 protection, Metal case (wave grain aluminum reinforce case option), 35mmDIN-Rail Installation
* Operating Temperature: -40℃ to 75℃ suitable to various Industrial work situation

  • Introduction
  • Specification
  • Dimension
  • Download
  • Order
  • Application
         This product is a can protocol type Fieldbus link redundant module, realizes the mutual conversion of single-road bus and double redundant bus, can connect single can port equipment to redundant bus network. The series conforms to the Fieldbus based on the CAN2.0A/B protocol, such as can, DeviceNet, CANOpen, SDS, NMEA2000, SAE J1939, SAE J2284, the rate is set by the dial-up switch (recommended) or the selection rate adaptive setting. The product is Industrial grad designed, Casing: IP40 protection, wave grain aluminum reinforce case option, DIN rail mounting, DC (9~36V) power input, support Fieldbus ports error Relay alarm output, dual redundant power input and isolation protection. -40~75℃Operating Temperature, can meet various Industrial situation.
    Bus data interface
    * 3 5-Pin terminal interface, in line with the recommendations of the organization of CiA and ODVA
    * Support CAN/DeviceNet/CANOpen bus standard
    * Baud Rates: DeviceNet/CANOpen full rate adaptation, up to 1Mbps
    * Isolated voltage 1000V,4000V Anti-thunder protection
    * Resistor: the unit has 120 ohms, use corresponding switch to make it to be enable(Invalid default)

    Power
    * DC (9~36V) dual redundant power input, industrial standard voltage DC 24V, consumption is less than 4W, With DC 1500V voltage isolation and reverse connect protection, adopt 5 cores 5.08mm industrial terminal port (please use industrial standard power, otherwise it will occur unit error or damage).

    Protection
    * Relay: Fieldbus ports error Relay alarm output
    * Contact rating: 1A @24V DC, Industrial Terminal port

    Mechanical

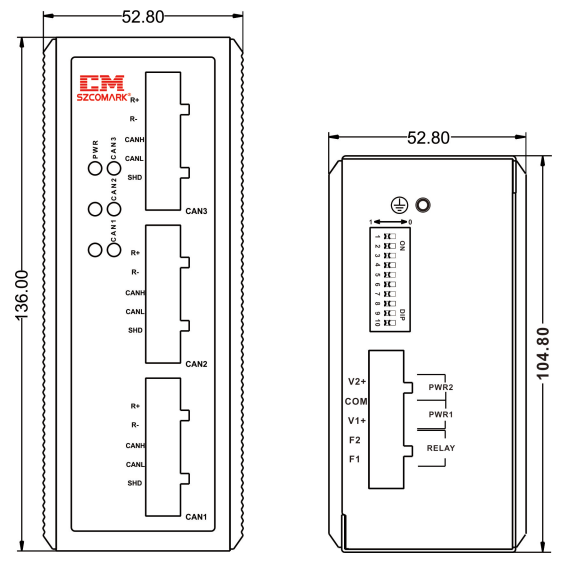

    * Dimensions (H×D×W): 136mm×104.8mm×52.8mm
    * Weight:800g
    * Casing: IP40 protection, wave grain aluminum reinforce case option
    * Installation: Wall mounting or DIN rail mounting

    Environmental
    * Operating Temperature:-40℃~75℃(-40℃~85℃ optional)
    * Storage Temperature: -40℃~85℃
    * Ambient Relative Humidity: 5%~95%(non-condensing)

    Warranty
    * Warranty Period: 5 years

    Certification
    * IEC61000-4-2(ESD): Power ±2KV Contact, ±15KV Air; Relay ±2KV Contact, ±15KV Air; Data Cable ±15KV Air
    * IEC61000-4-4(EFT):Power ±4KV, Data Cable ±4KV
    * IEC61000-4-5(Surge):Power ±2KV CM/ ±1KV DM, Relay±2KV CM/ ±1KV DM
    * IEC60068-2-27(Shock)
    * IEC60068-2-32(Free Fall)
    * IEC61000-6-2(General Industrial Standard)
    * EN50121-4 (rail transit)
    SelectProduct ModelDescribe
    Ci-AA21CAN2.0A/B bus link redundancy module, 1 M port (CAN3), 2 redundant bus A (CAN1), B (CAN2) port, DIP switch setting rate.
    Ci-DD21DeviceNet bus link redundancy module, 1 M port (CAN3), 2 redundant bus A (CAN1), B (CAN2) port, DIP switch setting rate or rate adaptive option.
    Ci-OO21CANOpen bus link redundancy module, 1 M port (CAN3), 2 redundant bus A (CAN1), B (CAN2) port, DIP switch setting rate or rate adaptive option.
