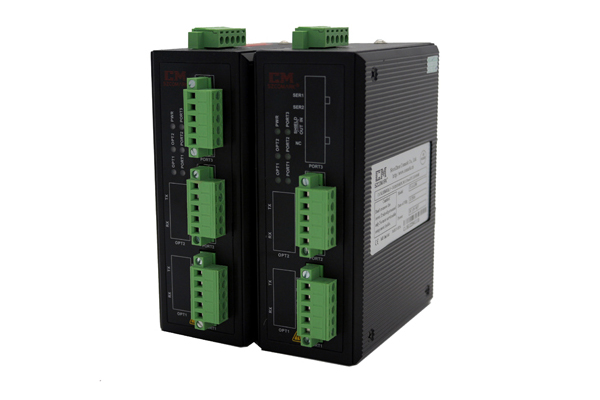

- This product is an industrial grade GE Genius Fieldbus isolator, conforms to GE Genius protocol, the highest communication rate 153.6Kbps,2 Road bus interface data forwards, the electrical signal isolates and provides the star link to the cable system. This product features with industrial grade design, IP40 protection grade, wavy aluminum strengthening shell, 35mmDIN rail installation, DC (18~36V) wide power input (9~18V DC power model customizable), with relay alarm output, power supply redundancy and isolation protection etc.. -40~75 working temperature range, can meet the requirements of a variety of industrial sites.
- Bus data interface
* GE Genius Fieldbus SER1, SER2 industrial terminal wiring
* Support for GE Genius Fieldbus protocol
* Baud Rates: 38.4Kbps、76.8Kbps、153.6Kbps(default)
* constant voltage 1000V
* Resistor: without terminal resistor, connect external when necessary.
Power
* DC (18~36V) dual redundant power input (can be customized with 9~18V DC), industrial standard voltage DC 24V, consumption is less than 1.5W, With DC 1500V voltage isolation and reverse connect protection, adopt 5 cores 5.08mm industrial terminal port (please use industrial standard power, otherwise it will occur unit error or damage).
Protection
* Relay: Fieldbus ports error Relay alarm output
* Contact rating: 1A @24V DC, Industrial Terminal port
Mechanical
* Dimensions (H×D×W): 136mm×104.8mm×52.8mm
* Weight:800g
* Casing: IP40 protection, wave grain aluminum reinforce case option
* Installation: Wall mounting or DIN rail mounting
Environmental
* Operating Temperature:-40℃~75℃(-40℃~85℃ optional)
* Storage Temperature: -40℃~85℃
* Ambient Relative Humidity: 5%~95%(non-condensing)
Warranty
* Warranty Period: 5 years
Certification
* IEC61000-4-2(ESD): Power ±6KV Contact, ±15KV Air; Relay ±8KV Contact, ±15KV Air; Data Cable ±2KV Contact,±15KV Air
* IEC61000-4-4(EFT):Power ±4KV, Data Cable ±4KV
* IEC61000-4-5(Surge):Power ±2KV CM/ ±1KV DM, Relay±2KV CM/ ±1KV DM
* IEC60068-2-27(Shock)
* IEC60068-2-32(Free Fall)
* IEC61000-6-2(General Industrial Standard)
* EN50121-4 (rail transit)
