- This product is an industrial-class serial Bus isolator, providing RS-485 serial port, support CC-link/BACnet/interbus/cs31/DH485 and other buses, communication rate 0~10Mbps Adaptive, 2-channel bus interface data forwarding, electrical signal isolation and cable system to provide a star link. This product features with industrial grade design, IP40 protection grade, wavy aluminum strengthening shell, 35mmDIN rail installation, DC (18~36V) wide power input (9~18V DC power model customizable), with relay alarm output, power supply redundancy and isolation protection etc.. -40~75 working temperature range, can meet the requirements of a variety of industrial sites.
- Bus data interface
* DB9F interface
* Support for CC-link/BACnet/interbus/cs31/DH485 etc many Fieldbus based on RS-485 protocol
* RS-485 support half-duplex mode , baudrate:0~10Mbps
* constant voltage 1000V
* Resistor: without terminal resistor, connect external when necessary.
Power
* DC (18~36V) dual redundant power input (can be customized with 9~18V DC), industrial standard voltage DC 24V, consumption is less than 1.5W, With DC 1500V voltage isolation and reverse connect protection, adopt 5 cores 5.08mm industrial terminal port (please use industrial standard power, otherwise it will occur unit error or damage).
Protection
* Relay: Fieldbus ports error Relay alarm output
* Contact rating: 1A @24V DC, Industrial Terminal port
Mechanical

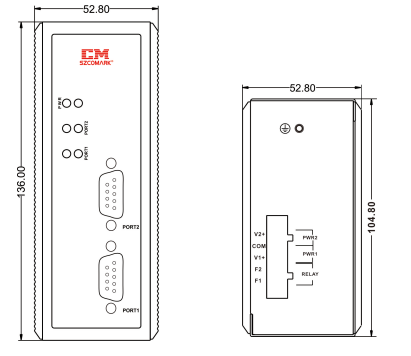

* Dimensions (H×D×W): 136mm×104.8mm×52.8mm
* Weight:800g
* Casing: IP40 protection, wave grain aluminum reinforce case option
* Installation: Wall mounting or DIN rail mounting
Environmental
* Operating Temperature:-40℃~75℃(-40℃~85℃ optional)
* Storage Temperature: -40℃~85℃
* Ambient Relative Humidity: 5%~95%(non-condensing)
Warranty
* Warranty Period: 5 years
Certification
* IEC61000-4-2(ESD): Power ±6KV Contact, ±15KV Air; Relay ±8KV Contact, ±15KV Air; Data Cable ±2KV Contact,±15KV Air
* IEC61000-4-4(EFT):Power ±4KV, Data Cable ±4KV
* IEC61000-4-5(Surge):Power ±2KV CM/ ±1KV DM, Relay±2KV CM/ ±1KV DM
* IEC60068-2-27(Shock)
* IEC60068-2-32(Free Fall)
* IEC61000-6-2(General Industrial Standard)
* EN50121-4 (rail transit)
